Home Master Filter - CREATE YOUR OWN

Home Master Filter - CREATE YOUR OWN
Details
SKU
HMF-CYO
Weight
24.00 lbs
Title
Home Master Create Your Own Whole House Water Filter
Our price:
$159.95
Options
Stages
Bracket Color
30 mic. sediment
5 mic. sediment
1 mic. sediment
Nanofiber sediment 0.2 mic
25/10/5/1 micron sediment
Radial Flow Iron
1 mic. lead & cyst Carbon Block
Radial Flow Catalytic Carbon (purple)
Radial Flow GAC
KDF55/Granular Activated Catalytic Carbon
KDF85/Catalytic Carbon
Acid Neutralizing/Calcite
Catalytic Carbon Filter
Add Pressure Gauges
Qty

CUSTOMIZE YOUR HOME MASTER® WATER FILTER

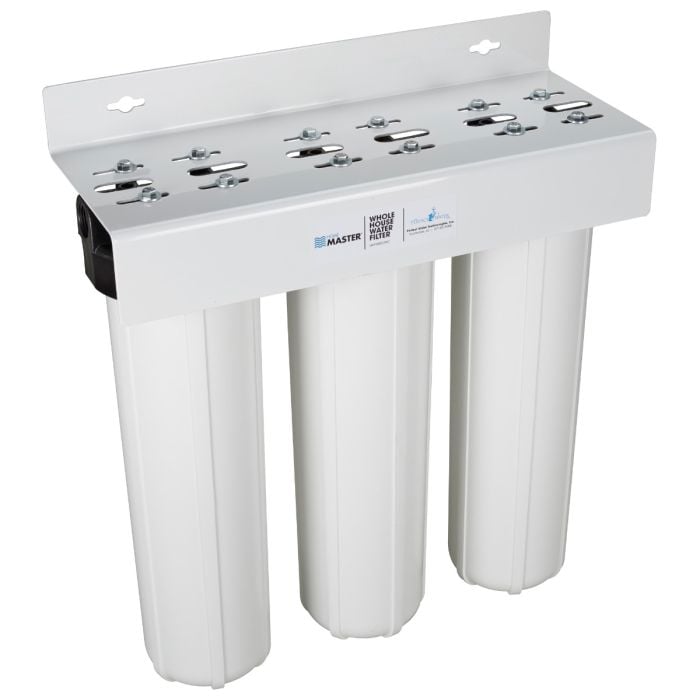

The Home Master® Whole House Water Filter

Pressure Performance Series

  • You pick the number and type of filters - we build it for you!

  • Massive filter housings with 1" ports for the strongest water pressure possible -- up to 20 gallons per minute.

  • Solid Steel mounting bracket

  • 2 Year Warranty

  • For 4-6 stages, use 2 systems

The choice is yours -- more sediment filtration, double the carbon filtration, add iron reduction -- you pick the number of stages and the corresponding number of filters and we'll build it for you with Pressure Performance.

The main purpose of the Home Master® whole house water filter is to deliver clean, clear water to every water faucet and shower head in your home without drawing down water pressure. Competitor’s systems use undersized housings with small ports, which restrict water flow and reduce performance so that shower pressure becomes weak and unpleasant.

   Nothing ruins a shower like weak water pressure

The Home Master® Filter Pressure Performance Series was designed with your comfort and convenience in mind. The Home Master® Filter Pressure Performance Series uses oversized filters, housings, and fittings whenever possible to ensure your water pressure never falls short. Larger housings mean larger filters, which require less frequent service, which in turn saves you time, money, and inconvenience. Customized water treatment with Home Master carbon water filter. Pick stages and filters, we build the system for you. Pure water everywhere in your home.

The Home Master® Water Filter – Pure Water Everywhere – with Pressure Performance

Contents :

  1. Instruction book and warranty card.
  2. Home Master® Water Filter system with selected filters
  3. Steel mounting bracket with bolts
  4. Housing wrench



Recommended Operating conditions

  • pH: >7.0
  • Silica: <100 ppm
  • Manganese: <1 ppm
  • Iron: < 3ppm
  • Iron Bacteria: NONE
  • Hydrogen Sulfide: NONE (The iron filter will remove Hydrogen Sulfide but it will reduce its effective life)
  • Feed water: 20 - 90 PSI
  • Feed water Temperature: 40˚ - 100˚(F)
  • Max. Total Dissolved Solids (TDS): 2000 ppm
  • Potable well or municipal water with adequate disinfection before and after unit

General System Specifications

  • Dimensions 25”h x 9”w x 9”d per stage
  • Shipping weight 15 lbs.per stage (approx.)



Filter Details

30 Micron Resuable Sediment
30 micron
Reusable
Sediment

Reusable Pleated Polyester Sediment Filter 30 micron

  • 30 micron pleated sediment filter.
  • Pleated design maximizes dirt-holding capacity.
  • Washable and reusable. 1-6 uses before tearing.
  • Reduces dirt, sand, silt, and rust particles.
  • Durable polyester media is bacteria and chemical resistant
  • Low pressure drop (<1psi)
30 Micron Resuable Sediment
5 micron
Reusable
Sediment

Reusable Pleated Polyester Sediment Filter 5 micron

  • 5 micron pleated sediment filter.
  • Pleated design maximizes dirt-holding capacity.
  • Washable and reusable. 1-6 uses before tearing.
  • Reduces dirt, sand, silt, and rust particles.
  • Durable polyester media is bacteria and chemical resistant
  • Low pressure drop (<1psi)
30 Micron Resuable Sediment
1 micron
Reusable
Sediment

Reusable Pleated Polyester Sediment Filter 1 micron

  • 1 micron Absolute pleated sediment filter.
  • Pleated design maximizes dirt-holding capacity.
  • Washable and reusable. 1-6 uses before tearing (do not reuse when treating Cryptosporidium and Giardia)
  • Reduces Cryptosporidium, Giardia, dirt, sand, silt, and rust particles.
  • Durable polyester media is bacteria and chemical resistant
  • Low pressure drop (<1psi)
25/10/5/1 micron
Multi Gradient
Sediment

Multi-Gradient Sediment Filter 25/10/5/1 micron

  • 4 layer sediment filter - 25 micron outer layer, 10 micron inner layer, 5 mircon inner layer, and 1 micron inner core.
  • Depth filtration maximizes dirt-holding capacity.
  • Removes dirt, sand, silt, turbidity and rust particles.
  • Durable polyester media is bacteria and chemical resistant
  • Low pressure drop (<1psi)
0.2 micron
Nano Fiber
Sediment

NanoFiber Sediment Filter 0.2 micron

  • 0.2 micron absolute pleated sediment filter. Electropositive material removes virtually all suspended particles.
  • Removes 99.9% viruses, bacteria, cryptosporidium, giardia, turbidity, fine silt, clay, and rust particles.
  • Some reduction of fluoride and other ionic metals at slower flow rates (~50% @ <5 gpm)
  • Triple the dirt-holding capacity of similar sized filters.
  • High flow, Low pressure drop (<1psi)
1 micron
Carbon Block
w/ lead & cyst

Carbon Block Filter 1 micron absolute with additional Lead and Cyst Defense

  • Fine carbon filtration - 1 micron absolute
  • Removes up to 99% chlorine, chemicals, tastes, odors, Cryptosporidium and Giardia cysts.
  • Lead removal over 90%
  • 42,000 gallon lifecycle for chlorine reduction, 17,000 gallons for  lead reduction
  • For applications where fine filtration is more important than high pressure (8.5 psi pressure drop @ 4 gpm)




Radial Flow
Iron Filter

Radial Flow Iron reducing filter 20 micron

  • Radial Flow design ideal for high flow applications
  • Excellent iron reduction with minimal pressure drop (<1 psi pressure drop)
  • Easily and effectively reduces iron in water up to 3ppm
  • Lifecycle based upon iron level and conditions. (see chart below)
iron filter lifecycle
