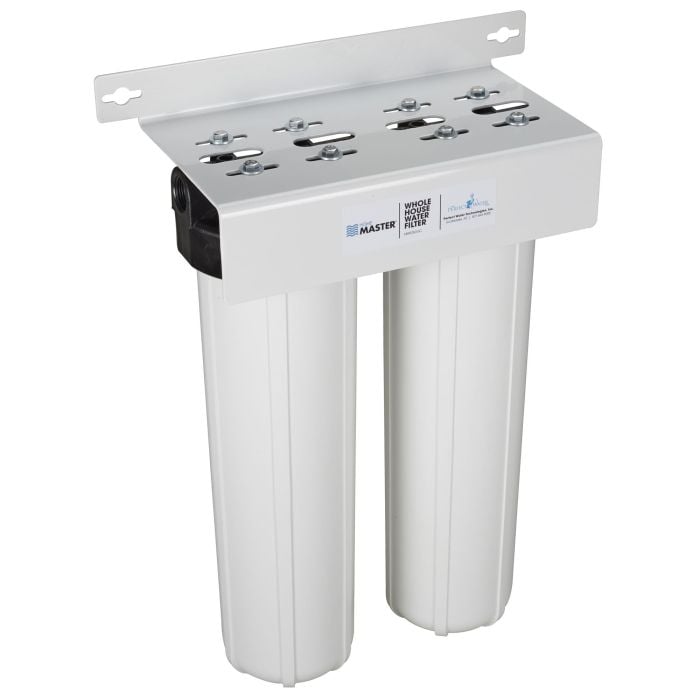

Home Master Filter 2 Stage Multi Gradient Sediment and Radial Flow Catalytic Carbon

The Home Master® Water Filter

Pressure Performance Series - Model #HMF2SmgRFCC

2 Stage Whole House Filter with Multi-Gradient Sediment and Radial Flow Catalytic Carbon Filter



Huge 20" x 4.5" filter delivers:

►  Maximum water filtration

►  Longer filter life

►  Stronger water pressure

►  Reduced maintenance frequency

► Steel bracket fits on 16" studs

Massive filter housings with 1" ports for the strongest water pressure possible -- up to 20 gallons per minute.

Four gradient density replaceable sediment filter produces finer filtration and greater dirt holding capacity. Filtration down to 1 micron.

95,000 gallon capacity replaceable catalyitic coconut shell carbon filter provides a full year of clean water for a family of four.

Excellent purification - removes up to 95% of VOCs, TOCs, chloramines, chlorine, sediment and other contaminants that create foul tastes and odors.

2 Year Warranty

The main purpose of the Home Master whole house water filter is to deliver clean, clear water to every water faucet and shower head in your home without drawing down water pressure. Competitor’s systems use undersized housings with small ports, which restrict water flow and reduce performance so that shower pressure becomes weak and unpleasant.

►  Nothing ruins a shower like weak water pressure.

The Home Master Filter Pressure Performance Series was designed with your comfort and convenience in mind. The Home Master Filter Pressure Performance Series uses oversized filters, housings, and fittings whenever possible to ensure your water pressure never falls short. Larger housings mean larger filters, which require less frequent service, which in turn saves you time, money, and inconvenience. Home Master Series delivers maximum water filtration and longer filter life.

The Home Master Water Filter – Pure Water Everywhere – with Pressure Performance...

1st Stage Filter - Multi-gradient depth polypropylene sediment filter.  25 micron surface, 10 micron inner layer, 5 micron inner layer, 1 micron inner core
    - Designed for purity with bacterial and chemical resistance
    - Four separate gradient density layers enhanced filter performance
    - Triple the dirt holding capacity of similar sized cartridges
    - Typical life cycle 6 - 12 months depending on usage and sediment quantity
    < 1 psi pressure drop @ 20 gallons per minute.

2nd Stage Filter - Radial flow granular activated catalytic coconut shell carbon - 20 micron
    - Chloramines, chlorine, chemicals, taste, and odor removal - 95,000 gallons
    - Ideal high flow applications < 1 psi pressure drop @ 20 gallons per minute
    - Improved carbon contact time for purer water
    - Highest grade catalytic carbon for maximum contaminant removal, including chloramines


  1. Instruction book and warranty card
  2. Home Master Water Filter system with filters
  3. Steel mounting bracket with bolts
  4. Housing wrench

General System Specifications:

  • Dimensions 25”h x 18”w x 9”d
  • Shipping weight 32 lbs.
  • Feed water: PSI 20 - 90 PSI
  • Feed water Temperature: 40˚ - 100˚(F)
  • Max. Total Dissolved Solids (TDS): 2000 ppm
  • pH limits: 4 - 10
Home Master Whole House Water Filtration System Manual
