Home Master ULTRA Reverse Osmosis System

• A Better RO System | Home Master Ulta's innovative design solves most common problems associated with cannister and tankless RO systems.
• EPA Registered | The Home Master UV Sterilizer is registered under EPA #97952-AZ-1 and has been approved to kill, inactivate or suppress growth of viruses, bacteria, fungi in water purification devices.
• NSF Certified Components | Meets or exceeds NSF standards for material safety and performance. NSF listed company.
• Highly Pure Water | 6-stages of filtration, and purification remove up to 99% of Chlorine & Chloramines, chemicals, lead, heavy metals, fluoride, microplastics, TDS, and thousands more. BPA and Lead free.
• Faster Flow Rate | Extra-large fittings provide twice the flow of traditional RO systems.
• KDF85 Iron Filter | Powerful redox filter media removes dissolved iron up to 1ppm – making it a great option for those on well water.
• Modular Design | Easy to upgrade and service. Filter changes once per year or 3000 gallons with no wrenches required.
• 5-year Limited Warranty | 30-day 100% satisfaction money back guaranty.

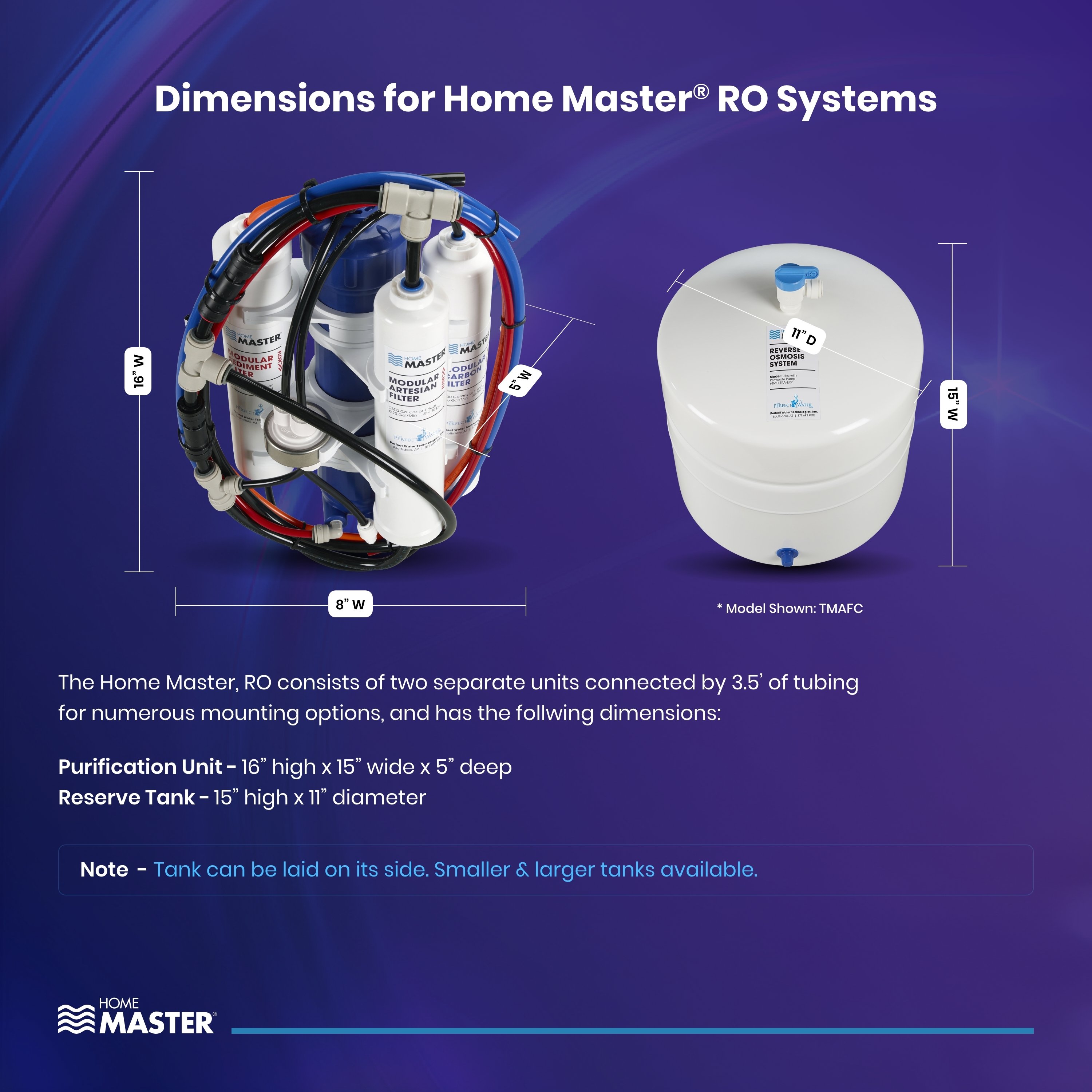

• In the Box | Assembled purification unit with filters and DOW RO membrane (0.0001 micron, 50 gpd), storage tank, 3/8 in. feed water adapter with shut off, chrome faucet and adapter, drain saddle. DIMENSIONS: Purification cluster - 16” high x 8” wide x 5” deep, Reserve tank - 15” high x 11” diameter

The Home Master Ultra Undersink Reverse Osmosis System delivers solutions, not problems. Even the most health conscious individuals will be impressed with its exceptional water purity — as it removes up to 99% of chemicals, iron and other metals while safely eliminating 99.99% of microorganisms, viruses, and other bacteria. Home Master’s innovative design eliminates the most common problems found in traditional RO systems — canister filter housing leaks, slow flow rate, and service challenges. It’s all backed by a five-year limited waranty, and U.S. technical support.

Home Master Ultra uses six stages of filtration, purification and sterilization to produce exceptionally clean water. It uses sediment, iron, and carbon filtration, and reverse osmosis purification to remove up to 99% of chlorine, iron, chemicals, heavy metals, fluoride, dissolved solids, pharmaceuticals, microplastics, and thousands of other contaminants. Also, the type of dissolved iron commonly found in well water will destroy the reverse osmosis membrane without the IRON pre-filter protecting it. The Home Master’s superior Iron pre-filter, which contains an advanced redox media KDF85 acts as a catalyst to help remove dissolved iron from the water. The UV sterilization chamber is always on guard and safely destroys 99.99% of germs, viruses, bacteria, and other microorganisms without dispensing hot water at the faucet.

This all results in exceptionally pure, safe, great-tasting water. Many tankless RO systems use imported ‘loose’ style membranes which can only achieve up to 94% reduction in total dissolved solids including heavy metals. Those membranes are intentionally loosely wound to allow for more flow, sacrificing purity to compensate for not having a storage tank. Home Master uses only the highest quality American made Dow membranes which can achieve up to 98% reduction in total dissolved solids including heavy metals. Additionally, all Home Master RO systems use powerful catalytic carbon filtration media in the carbon prefilter to treat the very persistent chemical disinfectant chloramine. Ordinary carbon filters are unable to effectively remove this stubborn contaminant that is now being deployed nationwide to replace chlorine. It takes the more advanced carbon media known as catalytic carbon. Some cannister and tankless RO systems fail to use a dedicated sediment pre-filter filter or use carbon block which can slow membrane production and increase waste, or increase maintenance requirements. All Home Master RO systems use a dedicated 5-micron depth sediment pre-filter to prolong filter life, and ensure the best possible performance.

The most significant problem associated with traditional RO systems is the ‘canister filter housing’ design, where only the filters are changed, and not the filter housings. Sediment, microorganisms and biofilm can accumulate in the canisters and, over time, the canisters will weaken, begin to leak and ultimately fail. This can potentially lead to serious water damage and costly home repairs.

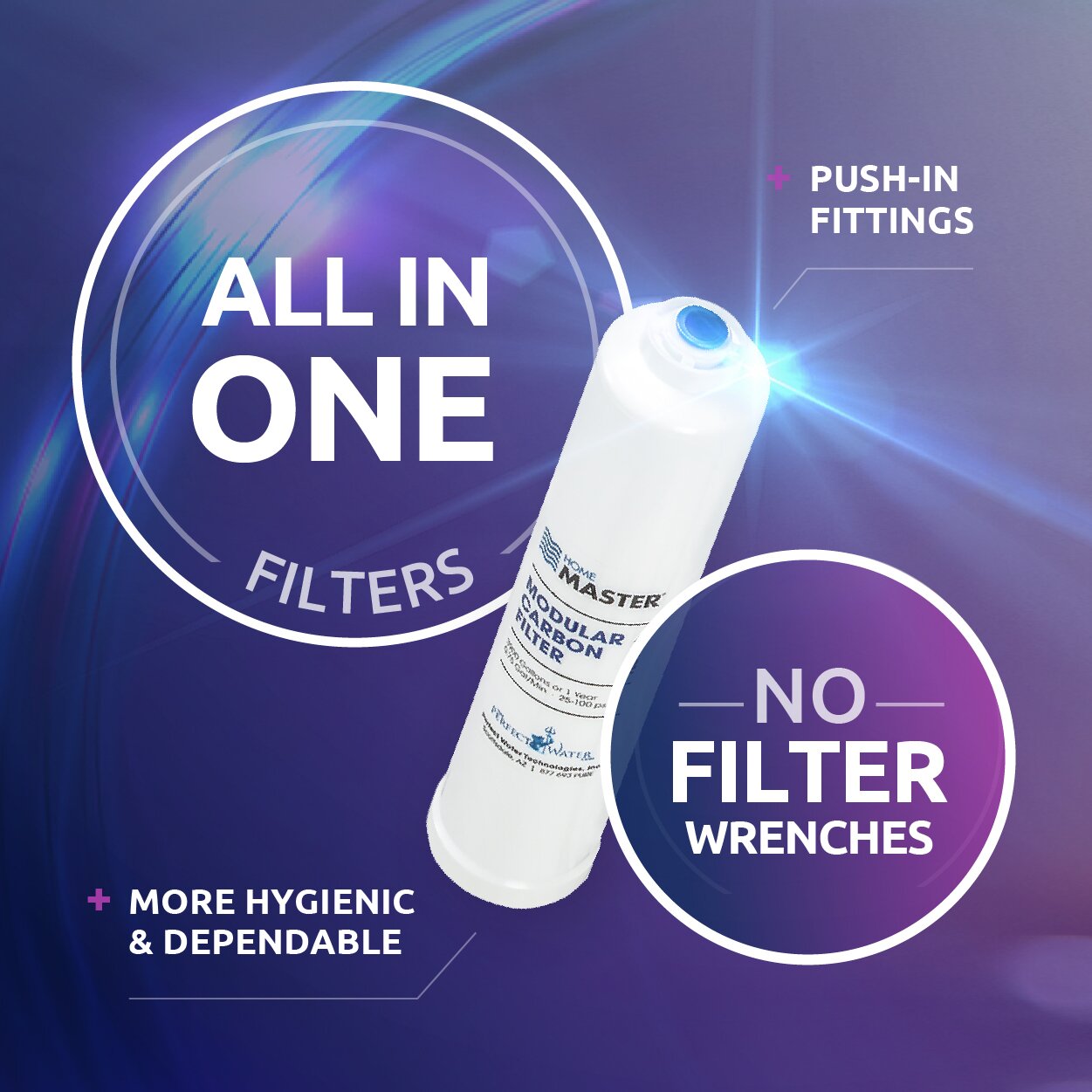

Some tankless RO systems employ a solid manifold design that is impractical to upgrade or service. Home Master’s innovative system uses a modular design where the components are exposed and the ‘all-in-one’ filters are incorporated into their housings. This makes annual filter changes fast and efficient, reduces microorganism and biofilm build-up and helps to eliminate leaks. Home Master filters last longer than traditional RO systems’ filters — only requiring a filter change once a year or every 3,000 gallons. When it comes to installation, service and system performance – Home Master’s modular design is beautiful.

Home Master Systems use granular carbon in the pre-filter rather than of carbon block to ensure the water pressure stays as strong as possible. Stronger water pressure to the membrane produces more water with less waste. Compare Home Master’s 8.5 inches of carbon contact time with the competition’s thin wall carbon block. More carbon contact produces cleaner water.

Some tankless RO systems fail to use a dedicated sediment pre-filter filter, forcing the entire sediment load into their carbon block which can slow membrane production, increase waste, maintenance requirements and costs. All Home Master RO systems use a dedicated 5-micron depth sediment pre-filter to prolong overall filter life, and ensure the highest possible water efficiency.

Home Master has discovered that using ultraviolet light filtration has many advantages in fighting microorganisms. UV light is more effective than chlorine in eliminating viruses – all without using harmful chemicals that change the chemistry of the water. As the water enters the ultraviolet sterilization chamber, it’s bombarded with an intense light wave (254 um). This light penetrates the cell walls of living microorganisms, attacking their DNA structure, leaving the organisms dead or unable to reproduce. The EPA has recognized UV technology as one of the four approved water sterilization methods, and is actually the #1 preferred method due to its instantaneous results. The Home Master HydroPerfection uses this EPA registered and verified method - delivering clean great tasting purified water directly to your tap – without leaving residual chemicals behind. The UV module is always on to ensure continued protection, and operates for a full year at 17,000-microwatt seconds/cm. We recommend changing it once a year for optimal performance. The Home Master HydroPerfection Undersink RO system is registered under EPA #97952-AZ-1, and has been approved to kill, inactivate or suppress growth of germs, viruses, bacteria, fungi, and other microorganisms in the water.

The Home Master Fast Flow RO! kit and optional non-electric permeate pump upgrade solve several problems commonly found in other RO systems: TDS Creep, slow flow rate, and poor water waste. Home Master Fast Flow RO! kit nearly doubles the flow rate by incorporating larger fittings, tubing and other high flow components.

To further improve system efficiency, Home Master offers a Permeate Pump upgrade on all RO systems. This device reduces water waste by up to 80% and increases water production by up to 50%, for about a 1:1 waste ratio. It allows the tank to fill fuller, plus, it provides slightly cleaner water by virtually eliminating a condition known as -TDS Creep – a significant issue with some tankless RO systems. TDS stands for Total Dissolved Solids which includes the hardness minerals, salts, and heavy metals. Home Master ULTRA systems ran with our permeate pump option address issues of TDS Creep by boosting pressure during the fill cycle, and keeping pressure to the storage tank and permeate side of the membrane constant. We increase efficiency by regulating the flow of water on both sides of the system – feed water and permeate water. Furthermore, because our storage tank keeps purified water on tap, wasteful flushing is not necessary between common periods of inactivity.

The Perfect Choice

With so many different RO systems, selecting the perfect one can be difficult. Choose the system that produces consistently pure, great-tasting water – has a reliable and easy to use design, and provides a faster flow rate. Order the Home Master TMAFC Undersink Reverse Osmosis system that brings solutions – not problems.

5-year limited warranty | BPA Free | Lead Free
